A Complete Guide to Else If Ladder in C

Conditional statements in C are necessary for directing the flow of execution based on specific conditions. They allow a program to decide which block of code to execute depending on whether a given condition evaluates to true or false. This helps in making decisions dynamically while running the program.

C provides several types of conditional statements:

1. If Statement

The if statement checks a condition, and if it evaluates to true (nonzero value), the associated block of code executes. It skips the block of code if the condition evaluates to false (zero).

Syntax of If Statement

if (condition) {
    // execute code if condition is true
}

Example

#include <stdio.h>

int main() {
    int num = 10;

    if (num > 0) {
        printf("The number is positive.\n");
    }

    return 0;
}

Since num is more than zero in this instance, the condition is true and the message is printed.

Output

The number is positive.

2. if-else Statement

The if-else statement provides two possible paths:

• Within the if block, the code runs if the condition is true.
• If the condition is false, the code inside the else block executes instead.

Syntax of If else Statement

if (condition) {
    // Code executes if condition is true
} else {
    // Code executes if condition is false
}

Example

#include <stdio.h>

int main() {
    int num = -5;

    if (num > 0) {
        printf("The number is positive.\n");
    } else {
        printf("The number is not positive.\n");
    }

    return 0;
}

Since num is -5, which is not greater than 0, the condition is false, and the else block executes.

Output

The number is not positive.

3. if-else if-else Statement

This structure makes it possible to examine several conditions one after the other. The software tests the next condition in the else if block if the first condition is false, and so on. The else block runs if none of the conditions are met.

Syntax of If-else If-else Statement

if (condition1) {
    // executes if condition1 is true
} else if (condition2) {
    // executes if condition1 is false and condition2 is true
} else {
    // executes if both condition1 and condition2 are false
}

Example

#include <stdio.h>

int main() {
    int num = 0;

    if (num > 0) {
        printf("The number is positive.\n");
    } else if (num < 0) {
        printf("The number is negative.\n");
    } else {
        printf("The number is zero.\n");
    }

    return 0;
}

Here, since num is 0, the first condition (num > 0) is false, the second condition (num < 0) is also false, so the else block executes.

Output

The number is zero.

The else if ladder in C is a control structure that allows for multi-way decision-making. It enables a program to evaluate several conditions consecutively and run the code block that corresponds to the first condition that returns true. The optional "else" phrase can be used to indicate a default action or block of code to be run in the event that none of the conditions are met.

How Does the Else If Ladder in C Programming Work?

In C, the else-if ladder is used to analyze circumstances from top to bottom. Only the block that corresponds to a true condition is executed; all other blocks are skipped.

This structure helps in handling multiple decision-making scenarios efficiently.

1. Working Mechanism of Else If Ladder

• When an else if ladder is executed, the program follows these steps:
• The first condition (condition1) is evaluated.
• The related piece of code runs if the condition is satisfied, and the remainder of the else-if structure is neglected.
• The program continues under the following condition if it is false.
• The second condition (condition2) is evaluated.
• If it is true, its code block executes, and the remaining conditions are skipped.
• If it is false, the program proceeds to check the next condition.
• This process continues for any additional else if conditions.
• It executes if none of the conditions are met if the else block is present.
• This ensures that only one code block is executed, even if multiple conditions are true.

Else if Ladder Example in C: Checking Grades Based on Marks

#include <stdio.h>

int main() {
    int marks;

    printf("Enter your marks: ");
    scanf("%d", &marks);

    if (marks >= 90) {
        printf("Grade: A\n");
    } else if (marks >= 80) {
        printf("Grade: B\n");
    } else if (marks >= 70) {
        printf("Grade: C\n");
    } else if (marks >= 60) {
        printf("Grade: D\n");
    } else {
        printf("Grade: F (Fail)\n");
    }

    return 0;
}

How it works

• If marks is 90 or more, it prints "Grade: A" and skips all other conditions.
• It prints "Grade: B" if the marks fall between 80 and 89, disregarding the others.
• This continues until the else block, which executes if no condition is met.

Output

Case 1: Marks = 85
Enter your marks: 85
Grade: B

Case 2: Marks = 55
Enter your marks: 55
Grade: F (Fail)

Else If Ladder vs. Multiple If Statements

Example Comparison

Else If Ladder (Stops After First True Condition)

if (x == 10) {
    printf("x is 10");
} else if (x > 5) {
    printf("x is greater than 5");
} else {
    printf("x is 5 or less");
}

If x = 10, only "x is 10" prints, and the rest is skipped.

Multiple If Statements (All Conditions Are Checked)

if (x == 10) {
    printf("x is 10");
}
if (x > 5) {
    printf("x is greater than 5");
}
if (x <= 5) {
    printf("x is 5 or less");
}

When x equals 10, the messages "x is greater than 5" and "x is 10" will both appear.

Here, we’ll explore real-world examples that demonstrate the use of decision-making in C programming such as finding the largest Number, and grading system.

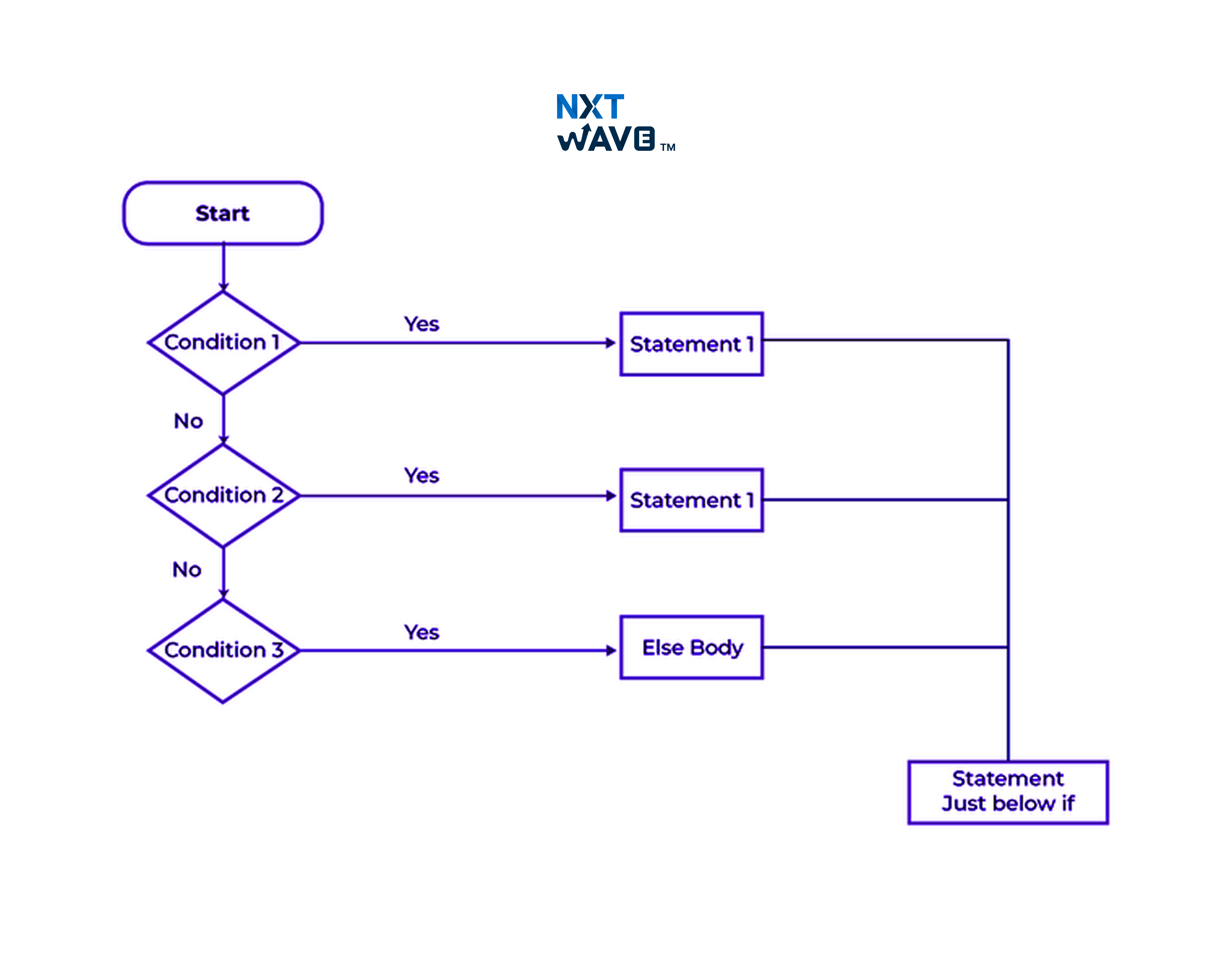

Flowchart Representation of If-else Ladder in C

A flowchart can be used to illustrate how an else if ladder in C works:

This flowchart illustrates the decision-making process, where the program evaluates each condition in sequence and executes the corresponding code block for the first true condition.

Example 1: Finding the Largest Number

Below is an example program that finds the largest of three integers:

#include <stdio.h>

int main() {
    int k, l, m;
    printf("Enter three integers: ");
    scanf("%d %d %d", &k, &l, &m);

    if (k >= l && k>= m) {
        printf("The largest number is: %d\n", k);
    } else if (l >= k && l >= m) {
        printf("The largest number is: %d\n", l);
    } else {
        printf("The largest number is: %d\n", m);
    }

    return 0;
}

Code Explanation

This C program takes three integers as input from the user and stores them in variables k, l, and m. It then compares the values using if-else conditions to find the largest number. The comparison checks whether k, l, or m is greater than or equal to the other two. Finally, it prints the greatest value among the three using printf().

Output

Enter three integers: 10 20 30
The largest number is: 30

Example 2: Grading System

A practical use of the else if ladder in C is to assign grades based on a student's score. The program below evaluates the score and prints the corresponding letter grade.

#include <stdio.h>

int main() {
    int score;
    printf("Enter the student's score (0-100): ");
    scanf("%d", &score);

    if (score >= 90) {
        printf("Grade: A\n");
    } else if (score >= 80) {
        printf("Grade: B\n");
    } else if (score >= 70) {
        printf("Grade: C\n");
    } else if (score >= 60) {
        printf("Grade: D\n");
    } else {
        printf("Grade: F\n");
    }

    return 0;
}

Code Explanation

This C program asks the user to enter a student's score between 0 and 100. Based on the score, it uses a series of if-else if conditions to determine the corresponding letter grade. The conditions check the score range and print grades from A to F. It helps demonstrate how decision-making structures work in C for grading logic.

Output

Enter the student's score (0-100): 100
Grade: A

A nested if-else in C means placing one if-else block inside another. This is useful when decisions depend on multiple levels of conditions. It helps handle complex logical checks where one condition leads to another.

Syntax

if (condition1) {
    // Executes if condition1 is true
    if (condition2) {
        // Executes if condition2 is also true
    } else {
        // Executes if condition2 is false
    }
} else {
    // Executes if condition1 is false
}

Example: Find the Largest of Three Numbers

Below is a program that helps to identify the largest number among three user-provided values. It uses conditional statements to compare the inputs and display the largest one.

#include <stdio.h>
int main() {
    int num1, num2, num3;
    printf("Enter three numbers: ");
    scanf("%d %d %d", &num1, &num2, &num3);
    if (num1 > num2) {
        if (num1 > num3) {
            printf("Largest number: %d\n", num1);
        } else {
            printf("Largest number: %d\n", num3);
        }
    } else {
        if (num2 > num3) {
            printf("Largest number: %d\n", num2);
        } else {
            printf("Largest number: %d\n", num3);
        }
    }

    return 0;
}

Code Explanation

• The user inputs three integer values.
• The program first compares the first two numbers.
• It determines whether num1 is greater than num3 if it is greater than num2.
• If so, num1 is printed as the largest. Otherwise, num3 is the largest.
• If the first condition fails, it compares num2 and num3 to find the largest.

This logic flow shows how nested conditions work in real-world comparisons.

Output

Enter three integers: 45 6 7
The greatest number is: 45

The else if ladder in C is a powerful control structure that helps programmers efficiently handle multiple conditions. It ensures that decisions are made sequentially, allowing for optimized execution, improved readability, and effective categorization of values. Here are some key advantages of using an else if ladder in C.

1. Optimized Execution with Efficient Condition Checking

One of the most significant advantages of using an else if ladder is that it stops checking conditions as soon as a match is found. The program evaluates conditions one by one in order. Once it encounters a condition that evaluates to true, it executes the corresponding block of code and ignores all remaining conditions.

2. Improved Readability and Logical Structure

The else if ladder enhances the readability of the code by providing a well-structured and sequential approach to decision-making. When handling multiple conditions, writing separate if statements can make the logic appear scattered and harder to understand. The else if ladder, on the other hand, organizes conditions in a single flow, making the code cleaner and easier to read.

3. Effective Decision-Making and Categorization

The else if ladder is particularly useful when dealing with scenarios that require categorizing values into distinct groups. For example, in a grading system, different score ranges can be classified into different grades, ensuring that each input falls into exactly one category.

The else if ladder in C is a fundamental control structure that enhances the efficiency, readability, and accuracy of decision-making in programs. By stopping condition checking once a match is found, it optimizes execution time. Its structured format makes the logic clear and easy to follow, improving the readability of the code.

Additionally, it ensures effective categorization of values, making it ideal for cases where inputs need to be grouped into distinct categories. These advantages make the else if ladder an essential tool for writing clean, efficient, and reliable C programs.

1. Why is an else if ladder in C important?

The else if ladder evaluates multiple conditions sequentially. It ensures that only one block of code executes when a matching condition is found, improving program efficiency and decision-making.

2. How does the else if ladder in C differ from multiple if statements?

Unlike multiple if statements, where all conditions are checked independently, the else if ladder stops checking once a true condition is found. This makes the code more efficient by avoiding unnecessary condition checks.

3. Can an else if ladder work without an else statement?

Of course, an else if ladder can function without using an else statement. However, having an else statement ensures that there is a default action if none of the conditions are met.

4. How many else if conditions can be used in an else if ladder?

There is no fixed limit to the number of else if conditions in a ladder. However, excessive conditions can make the code complex and harder to read, so it's best to use it wisely.

5. What happens if two conditions in an else if ladder are true?

Only the first true condition is executed; the remaining circumstances are skipped. This ensures that only one block of code runs, preventing conflicts in decision-making.

6. When should I use an else if ladder instead of a switch case?

Use an else if ladder when dealing with ranges of values or complex conditions. For fixed, discrete values like as menu options or constant cases, switch statements work well.

7. Can an else if ladder be replaced with a nested if statement?

Yes, however, nested if statements frequently make the code more difficult to read and update. The else if ladder provides a cleaner, more structured approach to handling multiple conditions.
