In a DBMS, continuous and efficient processing of transactions is crucial to data consistency and system performance. Deadlocks will likely be a major problem in multi-user database systems.
A deadlock happens when two or more transactions are waiting and cannot exit from the wait state since each is waiting for a resource possessed by the others. Deadlocks have the intense effect of slowing the system, resulting in delays, contention for resources, and even system failure if not properly managed.
For a responsive and healthy DBMS, learning deadlock, its causes, detection, and the ways of its resolution is crucial. The article will discuss the definition of deadlock, how it impacts the functioning of the database, and how it should be prevented and controlled.
What is Deadlock in DBMS?
Deadlock occurs when two or more transactions cannot proceed because each is waiting for the other to release resources. This results in a cycle of dependencies where no transaction can be completed. Deadlocks typically happen when transactions hold some resources and wait for others, leading to a halt. DBMS uses deadlock detection and resolution techniques, like timeouts or transaction aborts, to break the cycle and restore progress.
Types of Deadlock in DBMS
There are two types of deadlocks in Database management system such as:
- Resource Deadlocks
- Communication Deadlocks
1. Resource Deadlocks
Resource Deadlocks are experienced when processes need access to the resources, which happen to be held by other processes, leading to a deadlock.

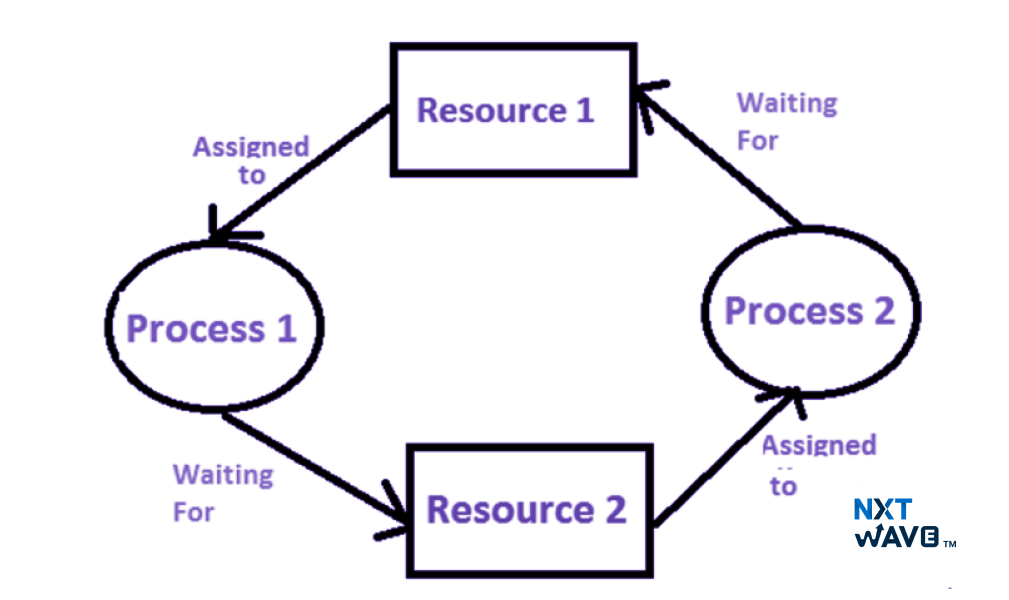

Let's take the example of Process A holding Resource 1 and waiting for Resource 2, and Process B holding Resource 2 and waiting for Resource 1.
2. Communication Deadlocks
Communication Deadlocks are less common but can occur in distributed systems where processes communicate through messages.
For example, process A waits for a signal from B, B waits for a signal from C, and C waits for a signal from A. As each process depends on another to proceed, none can move forward, creating a deadlock where all processes are stuck, and unable to progress.
Coffman Conditions for Deadlock
Deadlocks have four necessary conditions, and they are called Coffman Conditions. These conditions form the basis of explanation of deadlocks in DBMS like:
1. Mutual Exclusion
Mutual Exclusion condition says that any one resource should be utilized by a single process only. If there are many processes waiting for the same resource, then one process should lock the resource so that no other process can use it simultaneously.
2. Hold and Wait
The Hold and Wait condition occurs when a process is using one resource and is waiting for additional resources held by other processes. This creates a cycle where each process is waiting for resources that are locked by others.
3.No Preemption
The no preemption is the condition where resources cannot be taken from a process by force. A process can only release a resource voluntarily after it has completed its task.
4. Circular Wait
It is the condition where a set of processes are waiting for each other in a circular chain. For example, Process A waits for Resource 1, Process B waits for Resource 2, and Process C waits for Resource 3, but ultimately, they all depend on each other, causing a circular wait.
Deadlock Handling in DBMS
In DBMS, it means management and understanding of deadlocks in such a way that they will not affect the performance and dependability of the system. There are several techniques to manage deadlocks effectively like:
1. Deadlock Detection
Deadlock detection is the activity of finding out if there are any processes in a system waiting for one another and cannot proceed. A Wait-for Graph can be used for this, and the system keeps track of which processes are waiting for other processes or resources. When it detects a cycle in the graph, it takes necessary measures against deadlocks.
2. Deadlock Prevention
Deadlock prevention is a method to ensure that processes do not get stuck waiting for each other and cannot move forward. It involves establishing rules to manage resource usage so that processes do not get into a deadlock situation.
3. Deadlock Recovery
This is the process of breaking a deadlock, which is when two or more transactions cannot proceed because they are waiting for resources held by other transactions.
4. Deadlock Avoidance
Deadlock avoidance refers to proactive strategies and algorithms that ensure a DBMS never enters a deadlock state. Unlike detection or recovery, avoidance techniques analyze each resource request in advance and only grant it if doing so keeps the system in a "safe state" where all transactions can eventually complete without causing a deadlock.
Key Concepts in Deadlock Avoidance
- Safe and Unsafe States: A system is in a safe state if there exists a sequence of transaction execution that allows every transaction to finish without causing a deadlock. An unsafe state does not guarantee this, though it may not be deadlocked yet.
- Resource Allocation Graph (RAG): This is a directed graph representing transactions and resources. By analyzing the graph for cycles, the system can avoid granting requests that would lead to unsafe or deadlocked states.
- Banker’s Algorithm: The Banker’s Algorithm is a classic deadlock avoidance method. Before granting a resource, the DBMS simulates the allocation to check if the system remains in a safe state. If not, the request is denied or delayed. This approach requires advance knowledge of each transaction's maximum resource needs.
- Resource Ordering: By enforcing a global order in which resources must be requested, circular wait (a Coffman condition) is prevented, reducing the risk of deadlocks.
- Locking Techniques: Using fine-grained locks (such as row-level instead of table-level) and consistent lock acquisition order helps avoid deadlocks.
Real-world Examples and Applications
Understanding deadlocks in theory is important, but seeing how they occur in real-world database applications highlights their practical impact and the necessity of robust handling strategies. Below are some common scenarios where deadlocks can arise, along with relevant terms and mechanisms involved.
1. Banking Systems
In banking applications, multiple transactions often access and update shared resources such as account balances. Consider a scenario where Transaction A locks Account X and needs Account Y, while Transaction B locks Account Y and needs Account X. Both transactions are now waiting for each other to release their locks, causing a classic deadlock situation. This is a direct application of the hold and wait and circular wait condition.
2. Online Reservation Systems
Online ticket or seat reservation systems are highly susceptible to deadlocks, especially during high-demand periods. For example, two users might attempt to book the last two available seats at the same time. Each transaction locks one seat and tries to lock the other, resulting in a stalemate where neither can proceed. This scenario is often managed by using data-locks and implementing strategies to preemptively release resources or retry bookings.
3. Student Database Example
In educational databases, deadlocks can occur when updating related tables. For instance, Transaction 1 locks certain rows in the Student table and needs to update entries in the Grade table. Simultaneously, Transaction 2 locks rows in the Grade table and tries to update the Student table. Both transactions wait indefinitely for each other—an example of a circular wait and unidirectional lock acquisition issue.
4. Long-running Transactions
Deadlocks are more likely in systems with long-running transactions. The longer a transaction holds a lock, the higher the chance another transaction will need that locked resource, increasing the risk of a deadlock.
5. Operating System Examples
Deadlocks are not limited to database systems. Windows and UNIX-based systems can experience deadlocks when processes compete for system resources, such as files or memory blocks, and do not release them in a timely or ordered manner.
Benefits of Deadlocks in DBMS
While deadlocks are generally seen as undesirable, their management and controlled occurrence can bring certain advantages to a DBMS environment:
- Encourages the development of robust transaction management and concurrency control mechanisms.
- Helps maintain data integrity by enforcing strict resource allocation and locking protocols.
- Highlights resource contention and bottlenecks, aiding in system optimization.
- Promotes the use of best practices in transaction and resource management.
- Drives the implementation of effective monitoring and diagnostic tools for database systems.
- Increases overall system reliability by ensuring that deadlock scenarios are anticipated and properly handled.
Drawbacks of Deadlocks in DBMS
Here are some drawbacks of deadlocks in database management systems such as:
- Deadlocks can cause the system to stop working, which can result in a loss of revenue and productivity for businesses that use the DBMS.
- When transactions are blocked, the resources they require remain unused, resulting in a drop in system efficiency and wasted resources.
- Deadlocks can lead to a decrease in system concurrency, which can result in slower transaction processing and reduced throughput.
- Resolving a deadlock can be a complex and time-consuming process that requires system administrators to manually get involved.
- In some cases, recovery algorithms may require rolling back the state of one or more processes, which can lead to data loss or corruption.
Wait-for Graph in Deadlock Detection
Wait-for Graph (WFG) is a directed graph used to detect deadlocks in operating systems and relational database management systems. It determines the dependencies between system resources and processes, and it can be used to detect deadlocks.
Construction of the Wait-for Graph
In a WFG, the processes are depicted as nodes, and the edges show the waiting relationship between processes. If an edge from Pj to Pk shows that Pj is waiting for Pk to release a lock on some resource, then if a process waits on more than one resource, then multiple edges can represent a conjunctive (and) or disjunctive (or) set of alternate resources.
Detection of Deadlocks
A deadlock is represented by graph cycles in the conjunctive case and by knots in the disjunctive case. A cycle in the WFG tells us that one process is waiting for another process to free a resource, which waits for the third process to free a resource and so on. This gives rise to a circular dependency, and hence a deadlock.
Best Practices for Avoiding Deadlocks
Here are some best practices for avoiding deadlocks in DBMS:
- Use timeouts: When acquiring resources, use timeouts to avoid waiting indefinitely. If a resource is not available within a certain time frame, the thread should release all acquired resources and try again later.
- Lock ordering: Establish a consistent order for acquiring locks. For example, if two transactions need to access tables A and B, make sure they both lock A before B or vice versa.
- Avoid nested transactions: Minimize transactions that require access to multiple resources simultaneously.
Conclusion
In conclusion, deadlocks in DBMS have significant performance and reliability effects. It is important to know the causes, conditions, and control methods of deadlocks such as deadlock detection, deadlock prevention, and deadlock recovery to assure efficient database systems. Database administrators must adhere to good practices and stay up-to-date with the impact of deadlocks so that they can function well and lower risks in terms of deadlock occurrences.
Learn Industry-Relevant Skills While in College to Launch Your Software Career!
Explore ProgramFrequently Asked Questions
1. What are the types of deadlocks in DBMS?
There are 2 types of deadlock namely:
- Resource Deadlock: Transactions wait on resources (e.g., data rows, tables).
- Communication Deadlock: Processes are waiting for messages from each other.
2. Define the wait-for graph.
A wait-for graph is a directed graph used to detect deadlocks. Nodes represent transactions, and edges indicate waiting relationships (e.g., a transaction waiting for a resource held by another). A cycle in this graph signifies a deadlock.
3. What are the applications of deadlock in DBMS?
Deadlock management is critical in multi-user environments such as banking, online reservations, and e-commerce to ensure smooth database operations and prevent system failures.
4. What is deadlock and its types?
Deadlock is a condition in DBMS in which two or more transactions are permanently blocked waiting for resources possessed by the other. Examples include:
- Mutual
- Hold and Wait
- No Preemption
- Circular Wait
